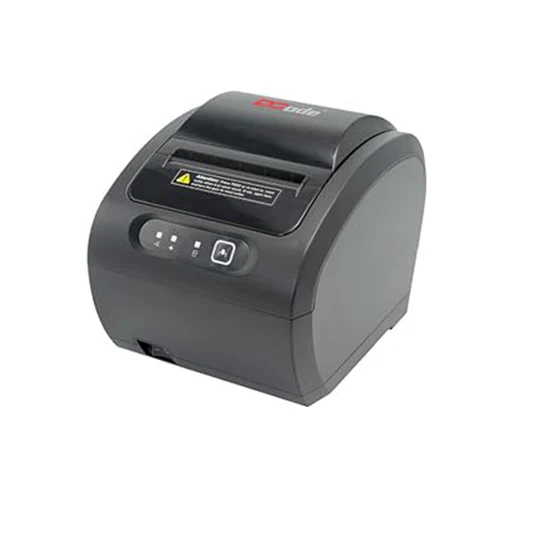

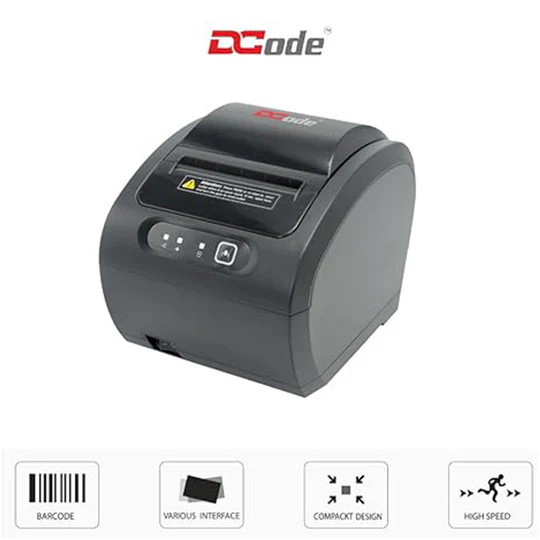

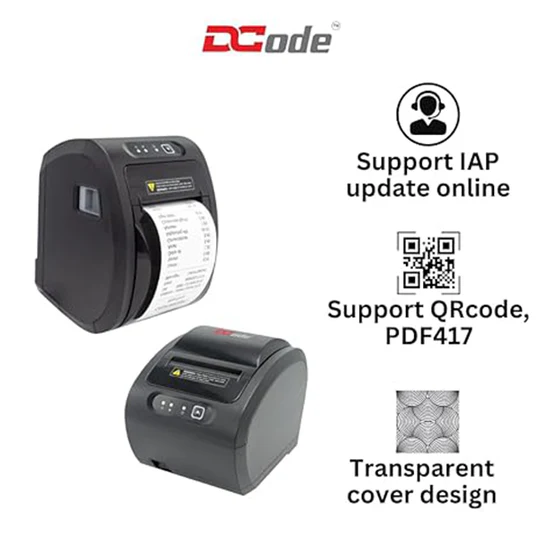

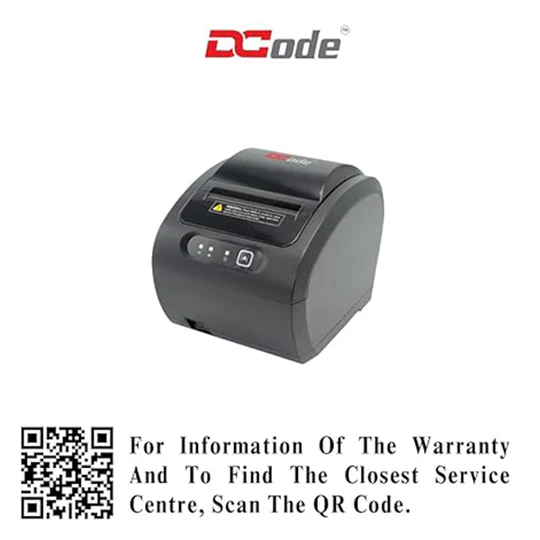

Dcode DC3R1 Direct Thermal Receipt Printer | 3inch | USB

Dcode DC3R1 Direct Thermal Receipt Printer | 3inch | USB

  • Model Name : DC 3R1
  • Interface : USB
  • Autocutter: Partial
  • MAX. Print Width : 3 inch
  • MAX. Print Speed : 200 mm/sec
  • Weight : 1.01 kg
  • Warranty : 1 year

Dcode DC3R1 Direct Thermal Receipt Printer | 3inch | USB

$4,230.00

  • Model Name : DC 3R1
  • Interface : USB
  • Autocutter: Partial
  • MAX. Print Width : 3 inch
  • MAX. Print Speed : 200 mm/sec
  • Weight : 1.01 kg
  • Warranty : 1 year
Category:

Description

The DC3R1 Direct Thermal Receipt Printer is a compact and high-performance printer designed to deliver efficient and reliable printing solutions. Equipped with cutting-edge Direct Thermal Printing technology, it ensures crisp and clear receipts without the need for ink or toner.

With a blazing-fast printing speed of 200 mm/s, this printer is perfect for high-volume environments, making it an ideal choice for retail, hospitality, and other industries requiring rapid and accurate receipt generation.

Supports a maximum print width of 72 mm and a paper width of 79.5 ± 0.5 mm, making it versatile enough to handle various paper sizes. This printer is engineered for ease of use and compatibility, ensuring seamless integration into your existing systems.

Applications

  • Perfect for generating customer receipts with speed and accuracy.
  • Ideal for printing order tickets and payment receipts.
  • Ensures smooth and fast checkout operations.
  • Suitable for issuing tickets in transportation and event management.
  • Useful for printing shipping labels and barcode tags.
  • Efficiently prints medical prescriptions and billing receipts.
  • Facilitates clear and concise transaction receipts.

This combination of speed, precision, and versatility makes the DC3R1 Thermal Receipt Printer an excellent choice for businesses looking to streamline their operations while maintaining high-quality printing standards.

Category Specification Details
General Model DC3R1
Print Method Direct Thermal
Print Speed 200 mm/s
Print Width 72 mm
Paper Width 79.5 ± 0.5 mm
Media Handling Media Type Continuous, Gap, Black Mark, Fan-Fold, Punched Hole
Media Width 25.4 ~ 118 mm (1.0" ~ 4.6")
Media Thickness 0.06 ~ 0.254 mm (2.36 ~ 10 mil)
Media Core Diameter 25.4 ~ 76.2 mm (1" ~ 3")
Label Length 10 ~ 1778 mm (0.39" ~ 70")
Label Roll Capacity 127 mm (5") OD
Ribbon Capacity Max 300 m
Ribbon Width 110 mm
Hardware Processor 32-bit CPU
Memory 8MB Flash Memory / 8MB SDRAM (Expandable to Max 4GB)
Interface USB
Sensors Supported Sensors Gap Sensor, Cover Opening Sensor, Black Mark Sensor, Ribbon Sensor
Barcode Support 1D Barcode Code 39, Code 93, Code 128, Codabar, Interleaved 2 of 5,
EAN-8, EAN-13, UPC-A, UPC-E, MSI, PLESSEY, POSTNET,
China POST, GS1 DataBar, Code 11
2D Barcode PDF-417, Maxicode, DataMatrix, QR Code, Aztec
Printing Features Rotation 0°, 90°, 180°, 270°
Emulation TSPL, EPL, ZPL, DPL
Physical Dimensions 282 mm (D) × 232 mm (W) × 171 mm (H)
Weight 2.56 kg
Performance Print Head Life 30 km
Driver Support Windows / Linux / Mac
SDK Windows / iOS / Android
Power Input AC 110–240V, 1.8A, 50–60Hz
Output DC 24V, 2.5A, 60W
Options Factory Options WiFi Module, RS-232C (2400–115200 bps)
Dealer Options External Paper Roll Holder, Cutter, Peeling Machine, Extension Board
Environment Operating Conditions 5°C – 40°C, Humidity 25% – 85% (Non-condensing)
Storage Environment -40°C – 60°C, Humidity 10% – 90% (Non-condensing)
